Which Is the Nyquist Limit?

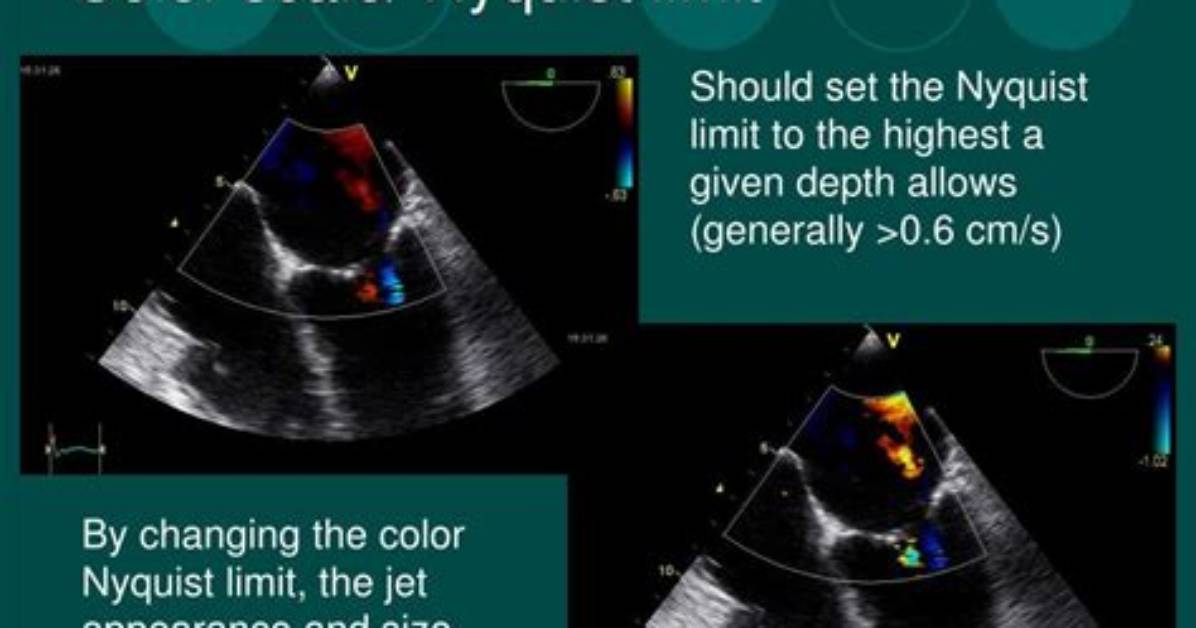

Physics. The Nyquist limit always equals Pulse Repetition Frequency (PRF)/2. The US machine can display the Nyquist limit either as the maximum measurable blood flow velocity, or in kHz, the latter representing the maximum measurable Doppler shift.

What is the Nyquist range?

The Nyquist frequency is therefore 22050 Hz. The anti-aliasing filter must adequately suppress any higher frequencies but negligibly affect the frequencies within the human hearing range; a filter that preserves 0–20 kHz is more than adequate for this.

What is the minimum Nyquist sampling rate?

The minimum sampling rate is often called the Nyquist rate. For example, the minimum sampling rate for a telephone speech signal (assumed low-pass filtered at 4 kHz) should be 8 KHz (or 8000 samples per second), while the minimum sampling rate for an audio CD signal with frequencies up to 22 KHz should be 44KHz.
