Which microprocessor has multiplexed data and address lines? 8086/8088.
Why the address lines are multiplexed with data lines?
The main reason of multiplexing address and data bus is to reduce the number of pins for address and data and dedicate those pins for other several functions of microprocessor. These multiplexed set of lines used to carry the lower order 8 bit address as well as data bus.
Must Read
How many address lines in 8086 microprocessor are multiplexed with data lines?

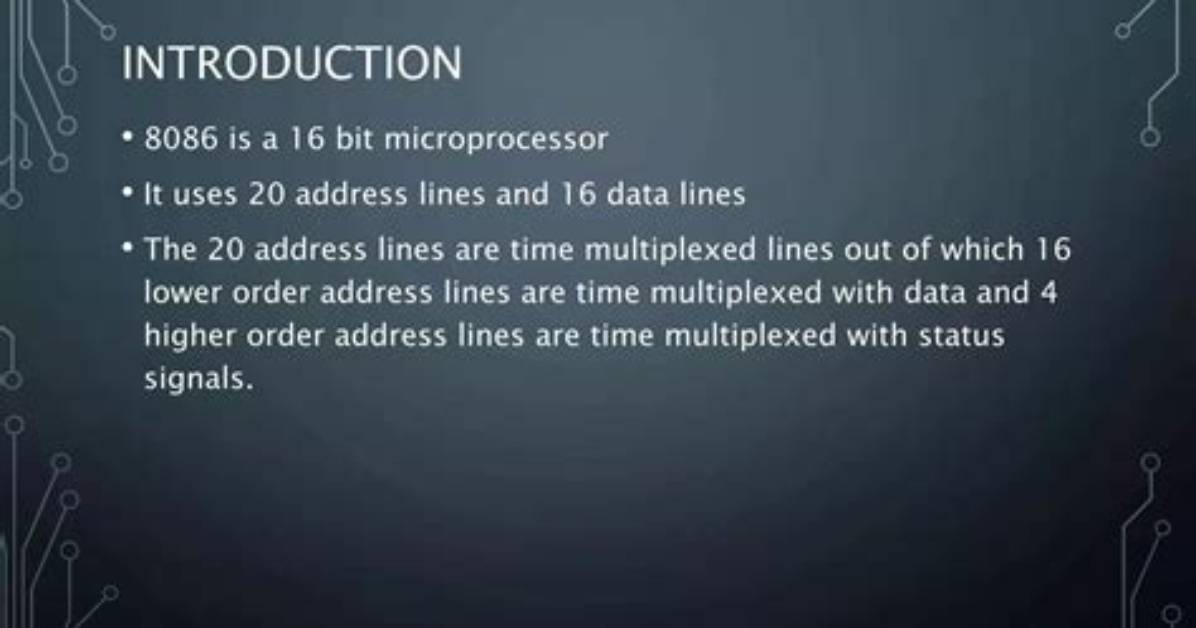

The 8086 uses 20-line address bus. It has a 16-line data bus. The 20 lines of the address bus operate in multiplexed mode. The 16-low order address bus lines have been multiplexed with data and 4 high-order address bus lines have been multiplexed with status signals.
