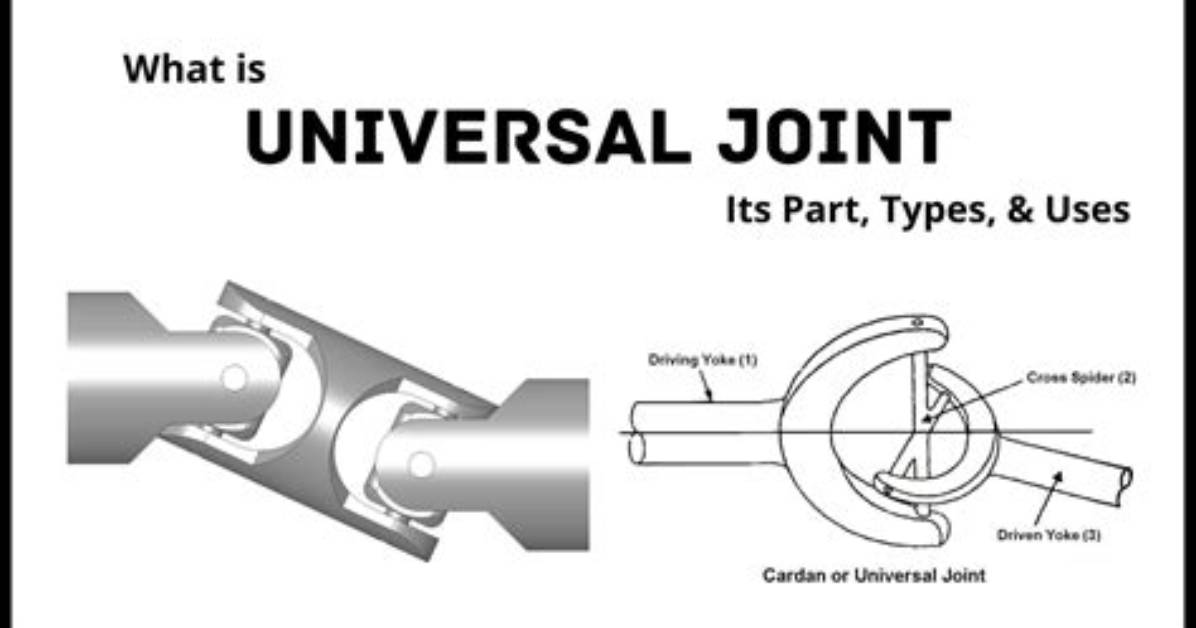

Why Is a Universal Joint Not Constant Velocity?
The Transmission Ratio of the Yokes Does Not Remain Constant over Time, but It Has a Smooth Periodic Oscillation with a Sine-Wave Pattern. This Means That the...
.
Besides, how does constant velocity joint work?
Constant-velocity joints (also known as homokinetic or CV joints) allow a drive shaft to transmit power through a variable angle, at constant rotational speed, without an appreciable increase in friction or play. They are mainly used in front wheel drive vehicles.
Beside above, what is the purpose of a universal joint? Universal joints fitted at each end of the propeller shaft allow it to move through an angle while maintaining free rotation. A universal joint is a joint between two rotating shafts that allows them to move at any angle and in all directions.
Likewise, people ask, what is the difference between a CV joint and a universal joint?
A constant velocity (CV) joint does essentially the same thing as a U-joint, only better. This eliminates the cyclic variations in speed that a U-joint experiences when it operates at more than a few degrees off-centre. A variation on the Rzeppa CV joint is the "cross- groove" CV joint.
What is the maximum angle for a universal joint?
15°
