Why Voltmeter Is Connected in Parallel and Ammeter in Series?
A Voltmeter Is Placed in Parallel with the Voltage Source to Receive Full Voltage and Must Have a Large Resistance to Limit Its Effect on the Circuit. an...

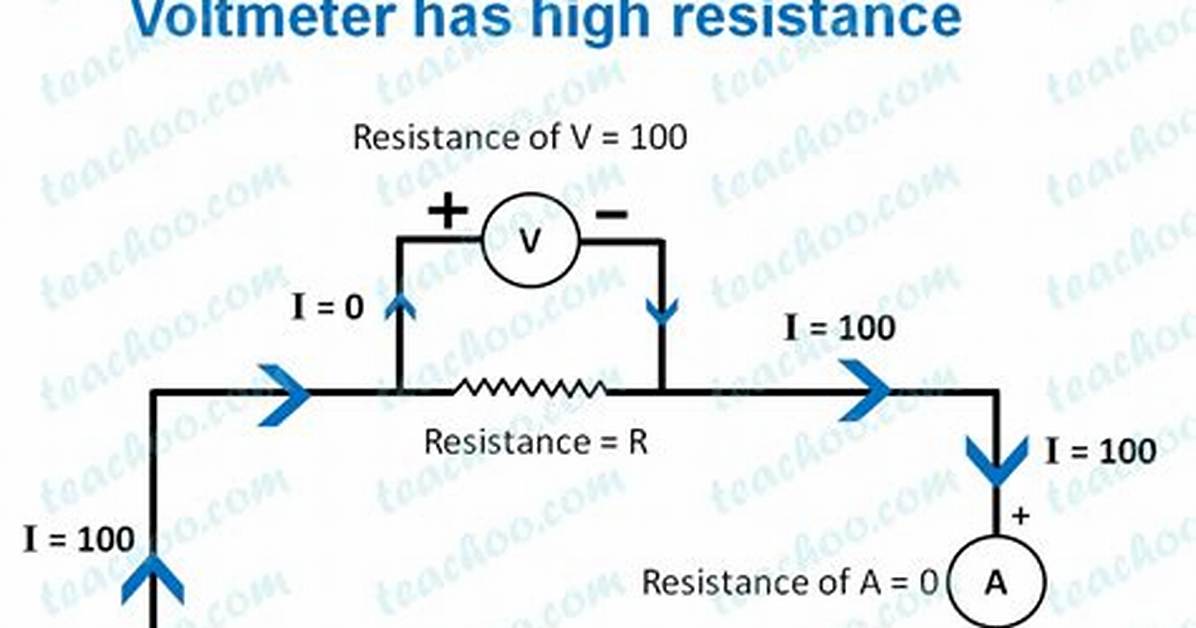

A voltmeter is placed in parallel with the voltage source to receive full voltage and must have a large resistance to limit its effect on the circuit. An ammeter is placed in series to get the full current flowing through a branch and must have a small resistance to limit its effect on the circuit.
Why is ammeter connected in series and voltmeter in parallel in the circuit?
Ammeter is always connected in series because it has low internal resistance. The current to be measured in the circuit should not be practically affected by the Ammeter, hence the need to have a low internal resistance. Voltmeter is always connected in parallel because it has high internal resistance.
Why voltmeter is connected in parallel?
In order for a voltmeter to measure a device's voltage, it must be connected in parallel to that device. This is necessary because objects in parallel experience the same potential difference. The potential differentiation of the circuit is measured by a voltmeter and it has high internal resistance.
