Will an Ohmmeter Work on a Circuit with Voltage Present?
Ohmmeters Form Circuits by Themselves, Therefore They Cannot Be Used Within an Assembled Circuit. .. . Since These Type of Meters Already Measure Current...
Ohmmeters form circuits by themselves, therefore they cannot be used within an assembled circuit. ... Since these type of meters already measure current, voltage and resistance all at once, these type of circuits are often used in digital multimeters.
Why should an ohmmeter never be used on an energized circuit?
Ohmmeters contain internal sources of voltage to supply power in taking resistance measurements. ... Ohmmeters should never be connected to an energized circuit (that is, a circuit with its own source of voltage). Any voltage applied to the test leads of an ohmmeter will invalidate its reading.
How should an ohmmeter be connected in a circuit?

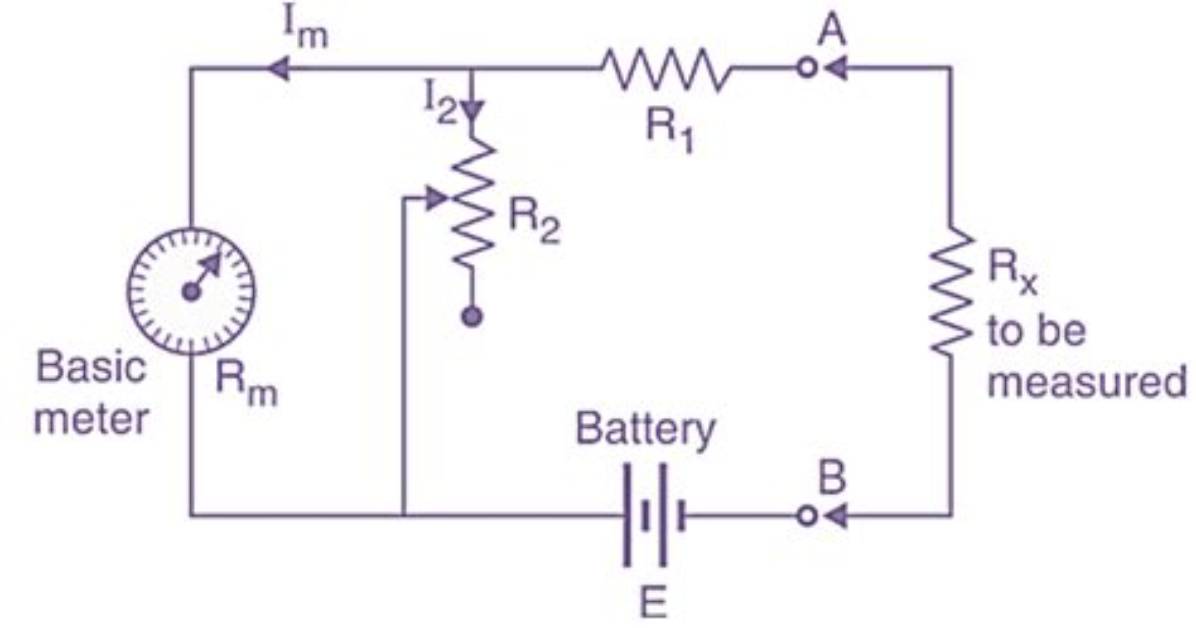

In the simplest ohmmeters, the resistance to be measured may be connected to the instrument in parallel or in series. If in parallel (parallel ohmmeter), the instrument will draw more current as resistance increases. If in series (series ohmmeter), current will decrease as resistance rises.
