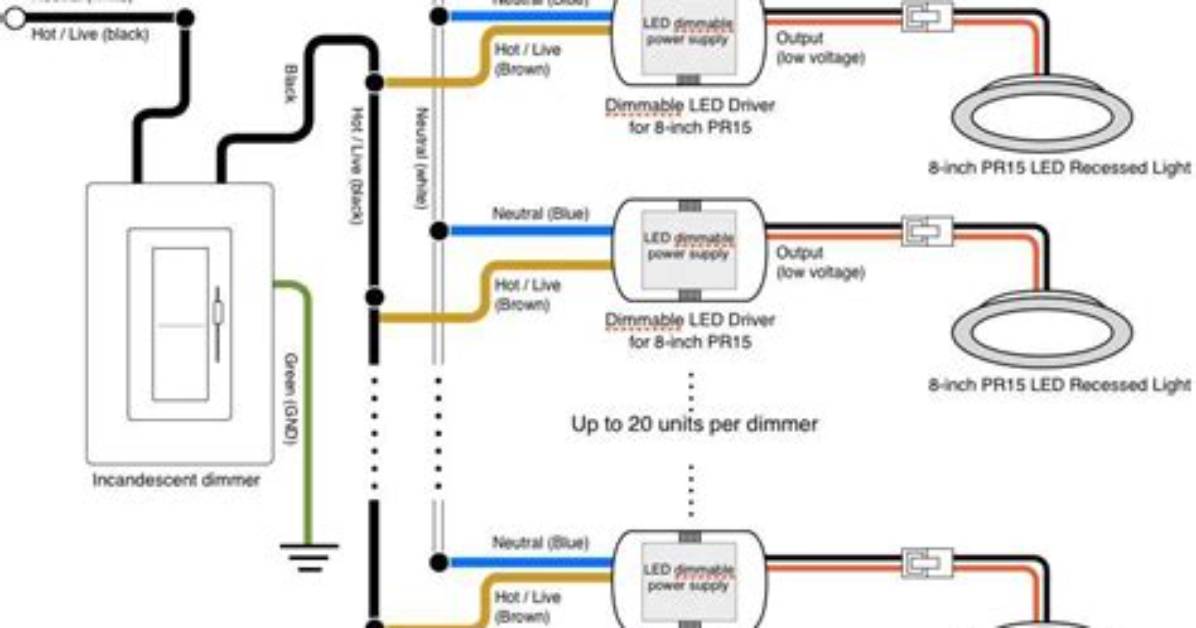

Wiring Recessed Lights in Parallel Diagram

You can wire them in any sequence. Do it in whatever way is the most convenient. The electricity doesn’t care, and doesn’t know the physical location of the fixtures. Household wiring is parallel, so there isn’t really a sequence.

Can you wire recessed lights in parallel?

Remove, replace and rewire your recessed lighting in parallel to correct the residential circuit, advises Electrical Technology.

Can I daisy-chain recessed lights?

Remember that you must run one ultra-thin extension cable (or run of low voltage wire) for each light. You can not daisy chain multiple lights together.

How many recessed lights can be wired together?

The main limitation to the number of recessed fixtures you can run at the same time is the rating of the circuit breaker that controls the circuit. Each fixture with a 60-watt incandescent or halogen bulb draws about 1/2 amp, so a 15-amp breaker for a standard lighting circuit would be able to handle 30 of them.

How many can lights on one switch?

The main limitation on the number of recessed lights that a single switch can control is the rating of the circuit breaker controlling the circuit. Each incandescent or halogen 60-watt bulb draws around 1/2 amp, and therefore, standard lighting with a 15amp breaker can manage 30 lights.

How many LED lights can you daisy-chain?

For example, if you choose a 120-volt power supply for daisy-chaining 10-watt LED tube lights, you will be able to connect 12 LEDs. However, to sail on the safer side, make sure that you do not connect more than seven tube lights to a power supply.

How many lights can be on a 15 amp circuit?

You can put up to 30 lights (based on 50 watt light) on a 15 amp breaker. You can put up to 40 lights (based on 50 watt light) on a 20 amp breaker.

Are Daisy wires parallel or series?

There are two methods of wiring up an electrical outlet. The first one is parallel wiring, and the other is series wiring, also known as “daisy-chaining”. Daisy-chaining an outlet means wiring receptacles in series with a single circuit.

How do you daisy-chain LED recessed lights?

In the attic, run a wire from over the switch location to the first six-inch light, then to the next and so on until all six-inch lights are daisy-chained to the switch location. Daisy chain the two small lights back to the same location using a separate set of wires.

Can you use 12 2 wire recessed lighting?

Yes, it is okay to use 12-2 cable to supply lighting fixtures. The other answer indicates that it even with 12-2 you have to use a 15A breaker for lighting circuits which is not strictly correct. If the entire circuit is 12AWG (other than fixture wires), then a 20A breaker may be used.
