Wpf: How to translateTransform a Rectangle?

Question

I'm trying to move a rectangle drawn in Canvas by mouse (drag and drop).

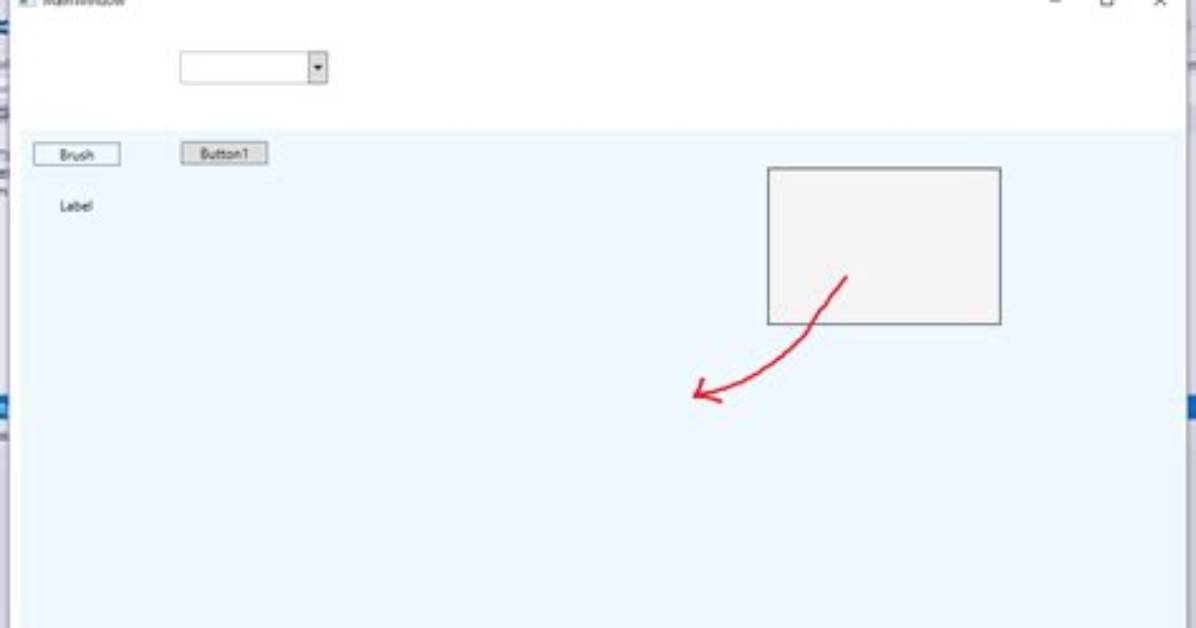

When I click on the Rectangle and move the mouse (keep clicking) to a new position it's OK:

But when I click on it again and move the mouse just a bit the Rectangle move to old position:

I don't know why it is. Can anybody give me some explaination?

Here is my code (all parameters have been assigned and initialized). Thanks in advance!

private void MyCanvas_MouseMove_1(object sender, MouseEventArgs e)
        {
            if (e.RightButton == MouseButtonState.Pressed && e.OriginalSource is Shape)
            {
                p2 = e.GetPosition(MyCanvas);
                TranslateTransform tf = new TranslateTransform(p2.X - p1.X, p2.Y - p1.Y);
                _MyTestRect.RenderTransform = tf;
            }

        }
private void MyCanvas_MouseRightButtonDown(object sender, MouseButtonEventArgs e)
        {

            if (e.OriginalSource is Shape)
            {
                p1 = e.GetPosition(MyCanvas);
            }

        }

Accepted Answer

Mvvm Behavior Approach add the refference to: System.Windows.Interactivity.

In XAML:

<Canvas x:Name="MyCanvas" Background="#00FFFFFF">
<i:Interaction.Behaviors>
    <!--soSandBox is the reffrence to the behavior-->
    <soSandBox:MoveElementsInCanvasBehavior/>
</i:Interaction.Behaviors>
<Rectangle x:Name="_MyTestRect1" Fill="Tomato" Width="50" Height="50"/>
<Rectangle x:Name="_MyTestRect2" Fill="Tomato" Width="50" Height="50"/>
<Rectangle x:Name="_MyTestRect3" Fill="Tomato" Width="50" Height="50"/></Canvas>

Behavior code:

protected override void OnAttached()
{
    base.OnAttached();
    AssociatedObject.MouseLeftButtonDown += AssociatedObjectOnMouseLeftButtonDown;
    AssociatedObject.MouseLeftButtonUp += AssociatedObjectOnMouseLeftButtonUp;
    AssociatedObject.MouseMove += AssociatedObjectOnMouseMove;
}

private void AssociatedObjectOnMouseMove(object sender, MouseEventArgs e)
{
    if (_shape != null && _shape.IsMouseCaptured)
    {
        _p2 = e.GetPosition(AssociatedObject);
        _shape.SetValue(Canvas.TopProperty, _p2.Y - _originalOffsetFromTop);
        _shape.SetValue(Canvas.LeftProperty, _p2.X - _originalOffsetFromLeft);
    }
}

private void AssociatedObjectOnMouseLeftButtonUp(object sender, MouseButtonEventArgs e)
{
    if (_shape == null) return;
    _shape.ReleaseMouseCapture();
    _shape = null;
}

private double GetDist(double originalValue, double newValue)
{
    if (double.IsNaN(originalValue) || double.IsInfinity(originalValue))
        return Math.Abs(newValue - 0);
    return Math.Abs(newValue - originalValue);
}

private void AssociatedObjectOnMouseLeftButtonDown(object sender, MouseButtonEventArgs e)
{
    _shape = e.OriginalSource as Shape;
    if (_shape != null)
    {
        _p1 = e.GetPosition(AssociatedObject);
        _shape.CaptureMouse();
        _originalOffsetFromTop = GetDist((double)_shape.GetValue(Canvas.TopProperty), _p1.Y);
        _originalOffsetFromLeft = GetDist((double)_shape.GetValue(Canvas.LeftProperty), _p1.X);
    }
}

protected override void OnDetaching()
{
    base.OnDetaching();
    AssociatedObject.MouseLeftButtonDown -= AssociatedObjectOnMouseLeftButtonDown;
    AssociatedObject.MouseLeftButtonUp -= AssociatedObjectOnMouseLeftButtonUp;
    AssociatedObject.MouseMove -= AssociatedObjectOnMouseMove;
}

Summary: This way you can put inside the canvas as much elements as you wish, and when you click the element (and when this element is a shape) you will be able to move it.

Translate Transform XAML:

<Canvas x:Name="MyCanvas" Background="#00FFFFFF">
<i:Interaction.Behaviors>
    <!--convert event to command mechanism-->
    <soSandBox:CanvasMouseEventObservingBehavior
        OnMouseMoveAction="{Binding OnMouseMoveAction, UpdateSourceTrigger=PropertyChanged}"
        OnMouseRightButtonDownAction="{Binding OnMouseRightButtonDownAction, UpdateSourceTrigger=PropertyChanged}"
        OnMouseRightButtonUpAction="{Binding OnMouseRightButtonUpAction, UpdateSourceTrigger=PropertyChanged}"/>
</i:Interaction.Behaviors>
<Rectangle x:Name="_MyTestRect1" Fill="Tomato" Width="50" Height="50">
    <Rectangle.RenderTransform>
        <TransformGroup>
            <TranslateTransform X="{Binding TranslateTransformX, UpdateSourceTrigger=PropertyChanged, Mode=TwoWay}"
                                Y="{Binding TranslateTransformY, UpdateSourceTrigger=PropertyChanged, Mode=TwoWay}"></TranslateTransform>
        </TransformGroup>
    </Rectangle.RenderTransform>
</Rectangle></Canvas>

Translate Transform view model (translation related code):

    private void RightMouseUp(Point obj)
{
    _originalPoint = obj;
    _currentOffsetByX = GetDist(_currentOffsetByX, obj.X);
    _currentOffsetByY = GetDist(_currentOffsetByY, obj.Y);

}

private void RightMouseDown(Point obj)
{
    _originalPoint = obj;
    _currentOffsetByX = GetDist(_currentOffsetByX, obj.X);
    _currentOffsetByY = GetDist(_currentOffsetByY, obj.Y);
}

private void MouseMoved(Point obj)
{
    TranslateTransformX = obj.X - _currentOffsetByX;
    TranslateTransformY = obj.Y - _currentOffsetByY;
}

private double GetDist(double originalValue, double newValue)
{
    if (double.IsNaN(originalValue) || double.IsInfinity(originalValue))
        return Math.Abs(newValue - 0);
    return Math.Abs(newValue - originalValue);
}

public double TranslateTransformY
{
    get { return _translateTransformY; }
    set
    {
        _translateTransformY = value;
        OnPropertyChanged();
    }
}

public double TranslateTransformX
{
    get { return _translateTransformX; }
    set
    {
        _translateTransformX = value;
        OnPropertyChanged();
    }
}

Regards

Answer 2

You should not create the transform every time otherwise you reset the translation.

Create a TranslateTransform if none exist.

Then cumulate the translations inside.

Regards

Answer 3

Try just using the Canvas.SetTop and Canvas.SetLeft.

Rectangle myRectangle = new Rectangle();
myRectangle += myRectangle_MouseLeftButtonDown;

void myRectangle_MouseLeftButtonDown(object sender, System.Windows.Input.MouseButtonEventArgs e)
{
    myRectangle.MouseMove += origin_MouseMove;
}

void myRectangle_MouseMove(object sender, System.Windows.Input.MouseEventArgs e)
{
    Point p = new Point()
    {
        // Just round the coordinates
        X = Math.Round(e.GetPosition(canvas).X, 0, MidpointRounding.AwayFromZero),
        Y = Math.Round(e.GetPosition(canvas).Y, 0, MidpointRounding.AwayFromZero),
    };

    Canvas.SetTop(myRectangle, p.Y);
    Canvas.SetLeft(myRectangle, p.X);

    myRectangle.MouseLeftButtonUp += myRectangle_MouseLeftButtonUp;
}

void myRectangle_MouseLeftButtonUp(object sender, System.Windows.Input.MouseButtonEventArgs e)
{
    myRectangle.MouseMove -= origin_MouseMove;
    myRectangle.MouseLeftButtonUp -= origin_MouseLeftButtonUp;
}
