What Uses a Push Pull Linkage

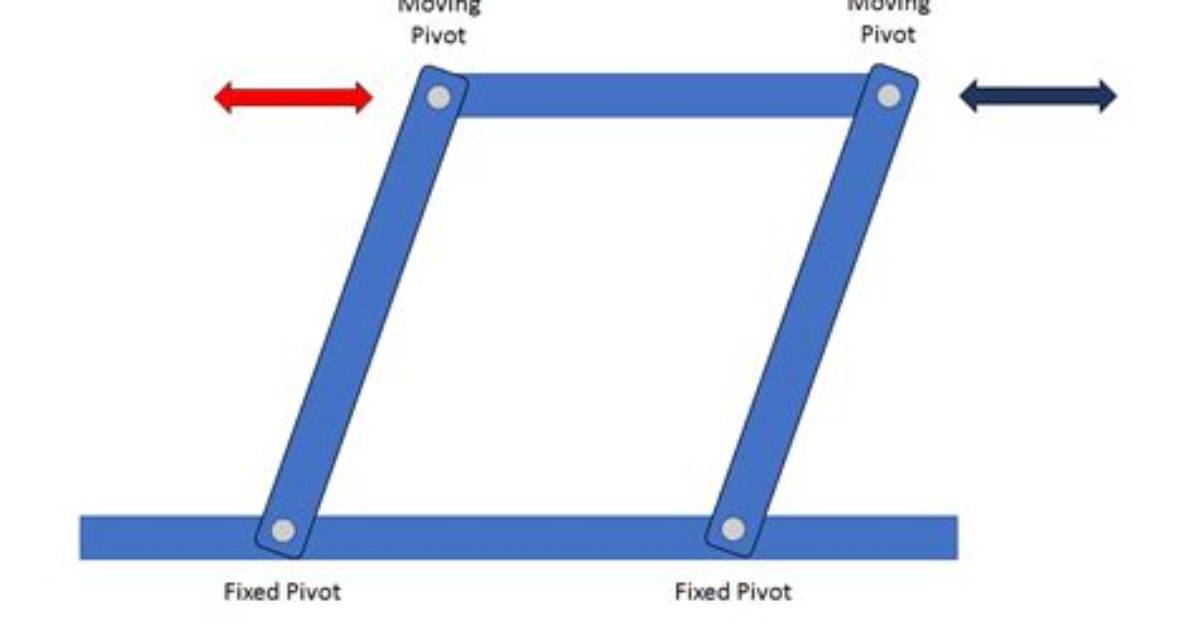

Parallel motion linkages or push/pull linkages use two fixed pivots to make the input and output travel in the same direction, through a link arm. … For example, a toolbox with drawers opens up effectively using parallel motion linkages.

Where can linkages be used?

Linkages are used in mechanical control systems to allow forces and motion to be transmitted to where they are needed. They consist of a series of levers which can change the direction of a movement, alter the size of a force or make things move in a particular way.

What are the types of linkages mechanisms?

Linkage are composed of links and lower pairs. The simplest closed-loop linkage is the four-bar linkage, which has three moving links, one fixed link and four pin joints. A linkage with one link fixed is a mechanism. … If it has one, you can impose one constraint on the mechanism for it to have definite motion.
