When Is Perspective Projection?

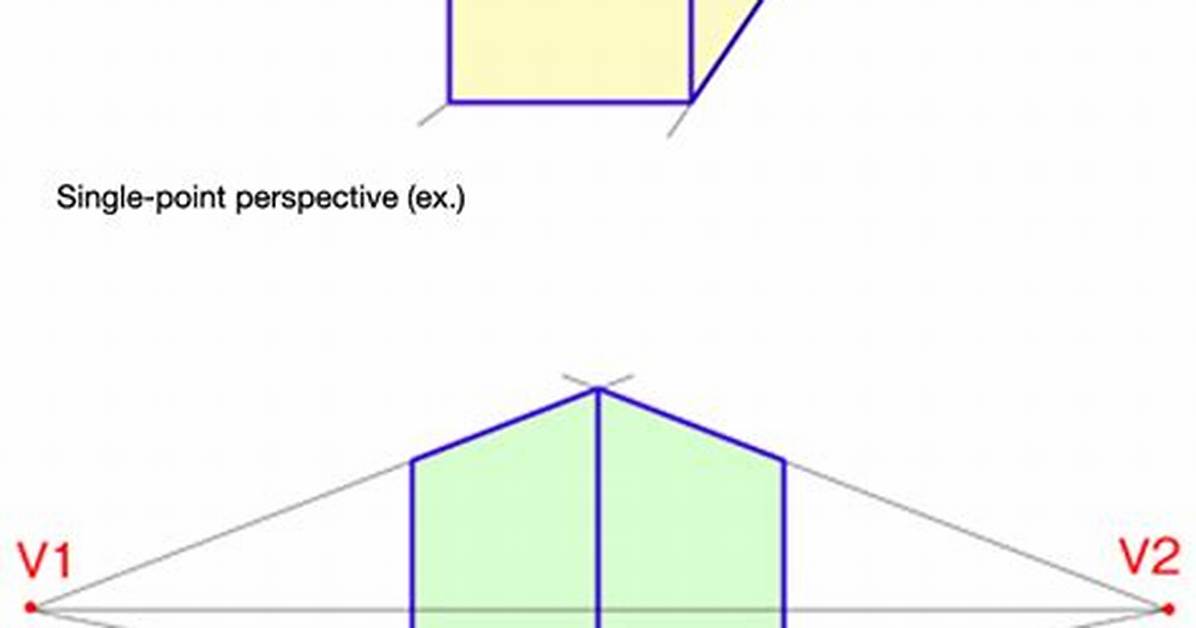

Two point perspective projection occurs when projection plane

intersects two of principal axis. In the above figure, projection plane intersects x and y axis wheres z axis remains parallel to projection plane. Three point perspective projection occurs when all three axis intersects with projection plane.

What is perspective projection?

Perspective projection is a type of drawing that graphically approximates on a planar (two-dimensional) surface (e.g. paper) the images of three-dimensional objects so as to approximate actual visual perception. It is sometimes also called perspective view or perspective drawing or simply perspective.

How does perspective projection work?

Perspective projections are used to produce images which look natural. When we view scenes in everyday life far away items appear small relative to nearer items. A side effect of perspective projection is that parallel lines appear to converge on a vanishing point. ... This intersection point is the projected point.
